Bitcoin Antminer S23 Series Review & Buying Guide

Bitcoin mining has become more competitive with each new generation of hardware. Mining companies and individual operators now need machines that can deliver a high hashrate while minimizing electricity use. Bitmain's Antminer S23 series was developed for this evolving mining environment. It includes powerful models tailored for buyers with various cooling systems, electrical setups, budgets, and mining goals.

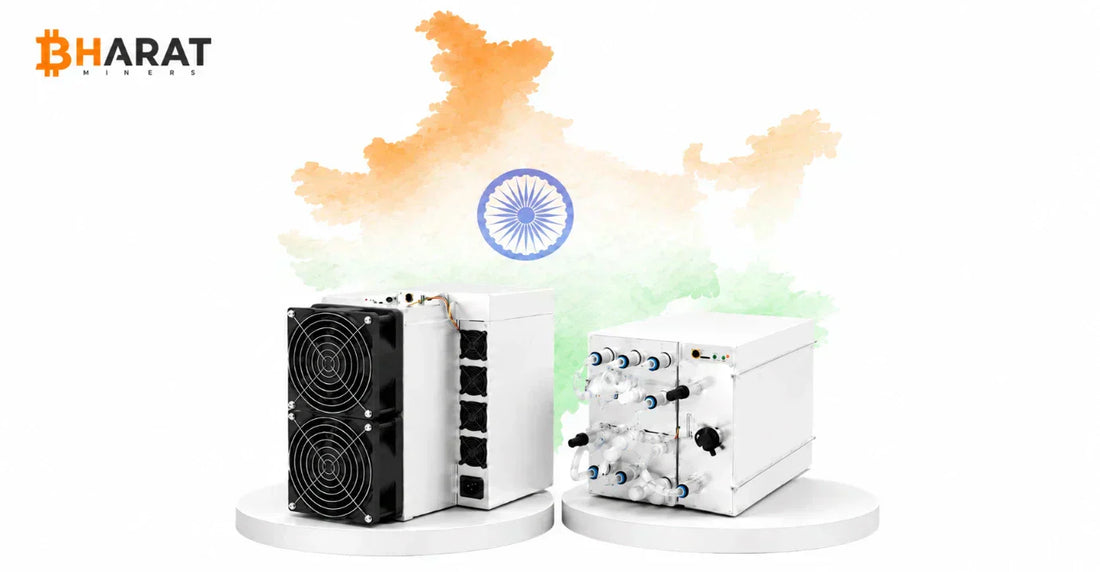

This review focuses on two key models: the air-cooled Bitmain Antminer S23 and the liquid-cooled Bitmain Antminer S23 Hydro. Both machines use the SHA-256 algorithm and are primarily designed for mining Bitcoin. However, they differ significantly in hashrate, power consumption, cooling requirements, installation costs, and ideal use cases.

The standard S23 provides 305 TH/s of computing power while consuming 3,355 watts. It uses four fans to manage heat and operates best in a well-ventilated mining room. In contrast, the S23 Hydro offers a much higher hashrate of 580 TH/s while consuming 5,510 watts. Instead of fans, it employs a hydro-cooling system that circulates coolant through the machine.

This detailed review of the Bitcoin Antminer S23 Series covers each major aspect of both models. It discusses specifications, performance, energy efficiency, cooling, electricity needs, noise, installation, mining profitability, maintenance, risks, advantages, and buying considerations. The goal is to help readers determine which machine is more powerful and which is more practical for their own mining setup.

Quick Overview of the Antminer S23 Series

The Antminer S23 series is part of Bitmain’s latest generation of SHA-256 mining equipment. It targets miners seeking greater processing power and improved energy efficiency than many older machines. Higher efficiency matters because electricity is usually the highest ongoing cost in Bitcoin mining.

The series offers buyers two main cooling options. The standard S23 uses air cooling, which is easier to install but tends to be noisier and relies heavily on ventilation. The S23 Hydro uses liquid cooling, which can remove heat more efficiently but requires additional cooling equipment, plumbing, and technical planning.

Here is a quick comparison:

The specifications show that the Hydro model is not simply a standard S23 with a different cooling system. It belongs to a different level of mining infrastructure. Its hashrate is much higher, its voltage requirements are different, and its cooling setup requires more planning.

What Is the Bitmain Antminer S23?

The Bitmain Antminer S23 is an air-cooled mining machine that produces 305 TH/s and uses about 3,355 watts. Its energy efficiency is around 11 J/TH. It has four high-speed fans that draw cool air in and expel hot air from the other side. This design makes it easier to set up compared to a hydro-cooled model, but the mining area still needs good ventilation.

The S23 needs a 220 to 277 V electrical supply and a stable Ethernet connection. Proper wiring, cooling, and network setup are crucial for safe and continuous operation.

What Is the Bitmain Antminer S23 Hydro?

The Bitmain Antminer S23 Hydro is a liquid-cooled mining machine that delivers 580 TH/s while consuming about 5,510 watts. It is more efficient at around 9.5 J/TH.

This model uses circulating coolant to remove heat, which means it does not depend on high-speed fans. This method offers better temperature control, but it needs pumps, pipes, and an external cooling system.

The Antminer requires a power supply of 380 to 415 V, a coolant flow of about 8 to 10 liters per minute, and pressure that does not exceed 3.5 bar. It is mainly designed for professional mining facilities with the right hydro-cooling setup.

Antminer S23 Series as a Modern ASIC Miner

An ASIC miner (Application-Specific Integrated Circuit) is a specialized piece of hardware engineered exclusively for one task: cryptographic calculation. Unlike standard computers or laptops, an ASIC miner cannot be used for general activities like web browsing, office tasks, gaming, or video editing. Instead, its microchips are hardwired down to the silicon level to execute a single, specific mining algorithm with maximum efficiency.

The S23 series utilizes the SHA-256 algorithm, which is the foundational cryptographic framework powering the Bitcoin network. In practice, these machines continuously run high-speed SHA-256 calculations to secure the network, working in tandem with a mining pool to discover valid block rewards. Once the pool successfully validates a block and secures a payout, that reward is distributed among the participating miners. Individual shares are calculated based on the specific hashing power and work contributed by each machine.

Because the S23 series is purpose-built for SHA-256, it lacks the flexibility to switch between different types of digital assets arbitrarily. It is compatible only with cryptocurrencies that share this specific algorithm. For prospective buyers, this means investing in an S23 should be a strategic decision driven by a desire for targeted exposure to SHA-256 mining, rather than a need for a general-purpose machine intended for multi-coin mining.

Complete Specifications of the Bitmain Antminer S23

The standard S23 combines high processing power with a traditional air-cooling design.

A tolerance may apply to hashrate, power consumption, and other operating figures. Actual results can also change because of room temperature, power quality, firmware, mining pool stability, and machine condition.

Complete Specifications of the Bitmain Antminer S23 Hydro

The S23 Hydro has higher processing power and more demanding installation requirements.

The pH value of the cooling liquid must remain within the recommended range. Incorrect coolant can cause corrosion, scaling, blocked channels, leakage, or poor heat transfer. Buyers should follow the manufacturer’s current cooling instructions instead of using any available liquid.

Hashrate Performance Explained

Hashrate is one of the first numbers people check when comparing mining equipment. The standard S23 produces 305 TH/s, while the Hydro model produces 580 TH/s.

This means the Hydro model can perform about 90% more mining calculations per second than the air-cooled model under rated conditions. However, this does not mean it will always produce exactly 90% more profit. Profit depends on many other factors, including electricity cost, pool fees, network difficulty, Bitcoin price, downtime, and cooling expenses.

The higher hashrate of the Hydro model can be useful for large operations because one machine can produce the work of nearly two standard S23 units. A facility may need fewer network connections, shelves, and individual machine control points for a given amount of hashrate.

However, concentration also creates risk. When a 580 TH/s unit is offline, the operator loses more active hashrate than when one 305 TH/s unit is offline. Large operators normally plan spare parts, backup pumps, alarms, and maintenance procedures to reduce this risk.

For smaller buyers, the 305 TH/s output of the standard S23 is already very high. It can provide strong mining performance without requiring a complete liquid-cooling system.

Understanding Energy Efficiency

Energy efficiency tells buyers how much electrical energy is needed to produce each terahash of computing power. A lower J/TH number is better.

The standard S23 operates at about 11 J/TH. The Hydro model operates at about 9.5 J/TH. The Hydro model, therefore, produces more mining work from each unit of electricity.

The difference may look small, but it becomes important when a machine runs 24 hours a day. Mining equipment is normally operated continuously, so even a small efficiency improvement can create a meaningful difference over months or years.

Efficiency matters most when:

• Electricity is expensive.
• Mining difficulty is increasing.
• Profit margins are becoming smaller.
• A farm operates many machines.
• The operator plans to use the hardware for a long period.
• Cooling equipment adds extra electrical consumption.
• The machine must remain competitive against future models.

Buyers should remember that the listed efficiency normally refers to the mining unit itself. A complete facility may also use electricity for exhaust fans, pumps, cooling towers, air conditioners, network devices, and lighting. These additional loads affect the real efficiency of the whole mining operation.

Daily and Monthly Electricity Consumption

Power consumption is listed in watts, but electricity bills are normally calculated in kilowatt-hours.

Standard S23 Electricity Use

The standard S23 uses about 3.355 kW.

Estimated daily electricity use:

3.355 kW × 24 hours = 80.52 kWh per day

Estimated 30-day electricity use:

80.52 kWh × 30 days = 2,415.6 kWh per month

S23 Hydro Electricity Use

The S23 Hydro uses about 5.510 kW.

Estimated daily electricity use:

5.510 kW × 24 hours = 132.24 kWh per day

Estimated 30-day electricity use:

132.24 kWh × 30 days = 3,967.2 kWh per month

These estimates assume uninterrupted operation at the rated power level. Real consumption may be slightly different because of power variation, firmware settings, temperature, machine tolerance, and downtime.

The hydro-cooling system may also use pumps, fans, or a cooling tower. This supporting equipment must be added when calculating the total electricity use of the Hydro setup.

Example Electricity Cost Calculation

The following table shows estimated machine-only electricity expenses at different energy rates. These figures do not include cooling equipment, taxes, demand charges, or other facility costs.

Electricity prices differ between states, cities, connection types, and usage levels. Commercial or industrial connections may also have fixed charges, demand charges, and taxes. The buyer should calculate costs using the complete electricity bill, not only the basic per-unit price.

Air Cooling on the Standard S23

Many mining buyers are more familiar with air cooling. The machine uses fans that move air around its heat sinks. The heat is expelled as hot exhaust.

Installation is easier. The main requirements of the operator are:

• Strong electrical circuit
• The wired internet connection
• Cool air enters the room
• Clear a path for hot air to exit
• Dust Management
• Distance between machines
• Where noise control is required

A unit that is air-cooled can produce a lot of heat. If the exhaust air in the room is not removed, it can become very hot. It may not be enough to place the machine next to a window.

The design is better and separates the cool from the hot side. The cool air enters the unit near the front, travels through it, and exits from the back. The hot exhaust air is directed to the outside via ducts or through a separate section of hot air.

The operator should not allow hot exhaust gases to return towards the front of the machine. Air recirculation is what this process is called. This can increase the intake temperature, causing high chip temperatures, fan strain, instability, or automatic shutdowns.

Hydro Cooling on the S23 Hydro

The Hydro model transfers heat via liquid rather than relying on airflow. The Hydro model is more efficient and has a higher hashrate because liquid can transport heat better than air.

A complete hydro setup may require:

• A compatible pump
• Pipes for supply and return
• Correct connectors
• A heat exchanger
• Radiator or cooling tower
• A coolant tank or reservoir
• Flow Control
• Pressure Monitoring
• Temperature sensors
• Leak detection
• Water Treatment
• Plan B for Pump Failure

It is not advisable to operate the machine without a proper coolant circulation. Internal temperatures can quickly rise if liquid flow is interrupted while the chips are working.

The coolant should also be clean and chemically suitable. Minerals, dirt, and incorrect pH levels may damage the cooling pathway. Pure water does not guarantee safety unless it meets certain quality standards. Operators should also take into account freezing conditions, corrosion prevention, and biological growth.

When designed correctly, hydro cooling can be a more efficient and controlled thermal system. It is not an easy solution for buyers who do not have a liquid cooling infrastructure.

Noise Comparison

When installing a miner in proximity to homes, offices, or communal spaces, noise is a major consideration. Standard S23 is a noisy machine, with four high-speed fan speeds. It's not suitable for quiet environments.

The actual noise level is dependent on the fan speed, the room size, the number of machines, ventilation, and sound insulation. Although the S23 Hydro is quieter than other machines, pumps, radiators, and cooling fans still produce noise. The entire hydro setup is not silent.

Heat Output and Space Planning

Both machines generate a lot of heat when they are running continuously. Standard S23 releases heat via its exhaust air.

The S23 Hydro is a 5.510 kW unit that transfers heat to the coolant. The heat must be removed by an external cooling system.

When planning the room, it is important to consider the summer temperature, machine quantities, airflow, coolant flow, dust, humidity, and backup cooling. It is important to design the setup for hotter operating conditions and not just cooler weather.

Electrical Safety and Requirements

Electrical protection and proper wiring are vital for mining machines that use a lot of power. Before installation, a qualified electrician should inspect the voltage, cables, and breakers, as well as sockets, phase loads, surge protection, and earthing.

Total electrical load must include cooling pumps, exhaust fan, and network equipment.

To reduce the risk of electrical shock, inspect your plugs, breakers, and connections regularly for signs of heat, discoloration, or damage.

Requirements for Networks and Internet

Both S23 models need a stable Ethernet wired connection. The mining process does not require a very fast internet connection, but frequent disconnections may result in rejected shares or lost time.

A reliable setup includes a router, Ethernet switches, high-quality cables, and, if available, a backup Internet connection. Even if the cooling and power are working, the machine will not be able to communicate with the pool if the network is down.

Basic Setup Process

Although the exact screen layout may vary with firmware versions and models, the overall process remains similar.

Step 1: Prepare your Location

Before turning on the machine, complete the work related to power, ventilation, and hydro-cooling. Test the unit for no more than a few hours in a room that is not prepared.

Step 2: Inspect your Miner

Check the outer casing, cables, connectors, and cooling ports. Check for obvious shipping damage and loose parts.

Step 3: Connect the cooling

Check that air can flow freely in and out of the S23 standard. Connect the supply and the return lines correctly for the Hydro model and verify proper coolant flow.

Step 4: Connect Ethernet

Connect the machine with a reliable router or switch.

Step 5: Connect power

Use the right electrical connection with approved cables. Use a high-quality extension board and avoid using a cheap adapter.

Step 6: Find your IP address

Find its IP address using the device list of the router, an IP scanner, or the IP-reporting function in the miner.

Step 7: Open Control Panel

Enter the IP in the browser and sign in with the correct credentials.

Step 8: Add Mining Pool Details

Enter the pool URL and worker name. Where supported, add backup pool addresses.

Step 9: Save your work and restart

The machine will begin mining as soon as you apply the settings.

Step 10: Monitor performance

Check the hashrate and chip temperatures. Also, check the fan speed, cooling temperature, error logs, and the rejected share rate.

Choosing a Mining Pool

Solo mining for one S23 is not usually practical because the probability of finding a Bitcoin Block is high. A machine could run for an extremely long time before finding a Bitcoin block.

Mining pools combine computing power from many miners. The pool distributes rewards based on its payment system when it finds a block.

Compare:

• Pool Fee
• Payment Method
• Minimum payout
• Server location
• Server stability
• Payment history
• Dashboard quality
• The Security of Your Own Home
• Customer support
• Withdrawal Rules

Payment systems that are commonly used include PPS+, FPPS, and PPLNS. Each system calculates rewards in a different way. The buyer should know the rules before choosing a pool based on the most recent return.

Configuring backup pools is also very useful. The machine can be switched to another pool if the pool server is unavailable. This will reduce the downtime.

Mining Profitability: What Really Matters?

A fixed daily or month-to-month profit cannot be guaranteed by any review. Mining income fluctuates regularly.

The most important factors are:

Bitcoin Price

When measured in local currency, a higher Bitcoin price can increase mined rewards. Even if the machine is mining the same amount of Bitcoin, a lower price can result in less revenue.

Network Difficulty

The difficulty adjusts according to the level of competition within the Bitcoin network. As more computing power is added to the network, difficulties may increase. The total rewards can be reduced for a machine.

Network Hashrate

Increased network hashrate is usually a sign of increased competition. Newer machines can add a lot of processing power to a network.

Electricity Cost

Electricity is a major expense. The energy rate that two owners pay can make a huge difference in the results of a machine.

Pool Fees

Normally, pools charge a fee based on a percentage. The miner's final payout is reduced by this fee.

Downtime

While a machine is not working, it does not earn any revenue. Electricity cuts, internet problems, overheating and repairs, as well as pool issues, reduce revenue.

Cooling Cost

Electricity is used by airflow fans, pumps, and cooling towers. These costs should be included.

Maintenance

Other items such as fans, pumps, pipes, and power parts may require repair or replacement.

Taxes and import costs

The real cost of ownership is affected by shipping, taxes, customs fees, and accounting rules.

A Better Way to Calculate ROI

Calculating ROI using only the machine price can give an unrealistic result. Include every setup and operating expense.

Total project cost = Machine price + shipping + taxes + electrical work + cooling + installation + spare parts

Monthly profit = Mining revenue − electricity − pool fees − cooling − maintenance and other expenses

Estimated payback period = Total project cost ÷ monthly profit

Compare positive, normal, and difficult market conditions. A machine should remain practical even when Bitcoin revenue falls, mining difficulty rises, or downtime increases.

Standard S23 Advantages

• Easier installation: No pumps, pipes, or coolant system required.
• Strong performance: Delivers a rated hashrate of 305 TH/s.
• Good efficiency: Operates at approximately 11 J/TH.
• Suitable for smaller setups: Easier to install with proper power and ventilation.
• Simple maintenance: Fan replacement and dust cleaning are familiar tasks.
• Fewer supporting parts: Lower risk of coolant leaks or pipe blockages.

Standard S23 Limitations

• Its four high-speed fans produce significant noise.
• Strong ventilation is required to remove heat.
• Dust can collect on internal parts and heat sinks.
• Fans may wear out during continuous operation.
• It is less efficient than the Hydro model.
• Enough space is needed around the intake and exhaust.

S23 Hydro Advantages

• Higher hashrate: Produces a rated output of 580 TH/s.
• Better efficiency: Operates at approximately 9.5 J/TH.
• Improved heat control: Liquid removes heat more effectively than air.
• Lower internal fan dependence: It does not use the same four-fan design.
• Better mining density: More hashrate can fit into a properly planned facility.
• Long-term value: Better efficiency may help it remain competitive for longer.

S23 Hydro Limitations

• It requires a complete liquid-cooling system.
• Its 380–415 V requirement may not suit smaller locations.
• Pumps, pipes, and electrical upgrades increase the total project cost.
• Coolant flow, pressure, quality, and temperature must be monitored.
• Poor fittings or damaged pipes can cause leaks.
• A pump or cooling-system failure can stop mining.
• Professional installation and technical knowledge are recommended.

Maintenance of the Standard S23

The air-cooled miners need to be inspected regularly because they constantly pull air through the machine.

Important maintenance tasks include:

• Checking fan operation
• Remove external dust
• Air filters should be inspected
• Cleaning the Room
• Checking cable temperatures
• Examining error logs
• Monitoring chip temperature
• Confirming stable Hashrate
• Checking for abnormal vibration
• Keep intake and exhaust free

Use only controlled high-pressure air to clean the machine. Before performing any physical maintenance, follow safe cleaning instructions.

The room is the first place to start dust control. The unit will collect dirt less quickly if the intake area is clean.

Maintenance of the S23 Hydro

Hydro systems must be checked for both liquid and mining machines.

Included in this list are:

• Checking coolant level
• Measuring flow rate
• Monitoring pressure
• Checking the temperature of the inlet and outlet
• Inspection of pipes and fittings
• Look for leaks
• Testing alarms
• Cleaning heat exchangers
• Pump inspection
• Checking coolant quality
• Measure pH as required
• Remove air from the cooling circuit
• Keeping backup parts available

Even a small reduction in flow rate can affect cooling quality. Instead of waiting until the miner overheats, operators should use monitoring systems to provide early warning.

Common Problems and Troubleshooting

1. Hashrate is Lower Than Expected. Possible causes include high temperatures, unstable power, chip errors, incorrect firmware, or a machine that has not yet started.
2. If the machine does not connect to the pool, check the internet connection, the pool address, the worker name, the DNS settings, and the firewall.
3. High Rejected Share Rate: Causes include a high network delay or an unstable pool server.
4. If the air-cooled miner is too hot, check for intake temperature, dust levels, fan speed and direction, as well as recirculated hot air.
5. Hydro Miner shows high temperature: Check coolant flow and pump operation.
6. Restarting the machine: There are many possible causes, including power instability, overheating, and firmware errors. Other possibilities include a weak circuit or a failing component.
7. Inspect fans and vibration for the standard model. Inspect the pumps, trapped air, and pipe supports for the hydro system.

Can the S23 Series Be Used at Home?

Standard S23 is more easily installed than Hydro, but is not recommended for living rooms. The 3,355 watts of power, 76 dB level of noise, and high heat output require a separate space with adequate wiring, ventilation, and sound control.

Hydro is less suitable for use at home because it requires high-voltage power and a liquid cooling system. Check the following before buying: electricity capacity, noise, stability of the internet, maintenance area, and local electrical laws.

Which Model Is Better for a Small Mining Setup?

Standard S23 is a better option for most small professional setups. It provides strong performance without the need for hydro-cooling infrastructure.

Hydro models are only practical if the site has liquid cooling, three-phase electricity, and technical support. The additional cost of the Hydro model may offset its benefits.

Which Model Is Better for a Large Mining Farm?

S23 Hydro offers a higher hashrate and better efficiency. It also improves heat control.

The cost of cooling and electrical infrastructure can be spread across many machines in large farms. Farms already designed for air-cooling may still find that the standard S23 is more cost-effective than rebuilding an entire facility to hydro cooling.

Who Should Buy the Standard S23?

The standard model may suit buyers who:

• Want high SHA-256 performance
• Have access to 220–277 V power
• Can create strong ventilation
• Prefer a simpler setup
• Do not have hydro infrastructure
• Understand mining noise
• Have a separate operating space
• Want easier maintenance
• Are you building a small or medium professional operation

It is also useful for operators upgrading from older, less efficient machines while keeping an air-cooled facility.

Who Should Buy the S23 Hydro?

The Hydro model may suit buyers who:

• Need maximum hashrate per machine
• Want better energy efficiency
• Have 380–415 V electrical infrastructure
• Already operates a liquid-cooled farm
• Can install pumps and heat exchangers
• Have technical maintenance support
• Plan to operate at scale
• Can monitor flow, pressure, and temperature
• Understand the complete project cost

Buyers who do not meet these conditions may find the standard model easier and safer to operate.

Antminer S23: A High-Performance Bitcoin Miner

Modern bitcoin miners must be able to do more than just provide a high hashrate. It must also be able to control the electricity used, stay stable when under constant load, and work with the cooling system of its operator.

Standard S23 is a well-balanced design. The 305 TH/s is enough to handle serious mining, while the air-cooled design is easy to understand. The Hydro version is more focused on performance and efficiency. The 580 TH/s Hashrate and 9.5J/TH Efficiency make it appealing for advanced facilities. Its benefits are only valuable if the supporting infrastructure is working correctly.

It is not always the machine with the highest hashrate that is the best. The machine chosen by the buyer should be able to meet their needs in terms of electricity, cooling, location, and skill level.

Bharat Mines offers Indian buyers the opportunity to review product details, pricing, and availability in real time before they make a purchase decision.

Final Comparison: S23 vs S23 Hydro

Conclusion

The Antminer S23 series offers strong performance with improved energy efficiency. The standard S23 delivers 305 TH/s at around 11 J/TH, making it a practical choice for miners who prefer a simpler air-cooled setup. The S23 Hydro provides 580 TH/s at approximately 9.5 J/TH. It is better suited to larger or advanced mining operations with the required high-voltage power and hydro-cooling infrastructure.

Before choosing a model, compare the total investment, electricity cost, cooling requirements, and available installation space. For current prices, specifications, availability, and other mining products, buyers can explore Bharat Miners, a trusted provider of crypto-mining hardware in India.
